Ref. ACC1

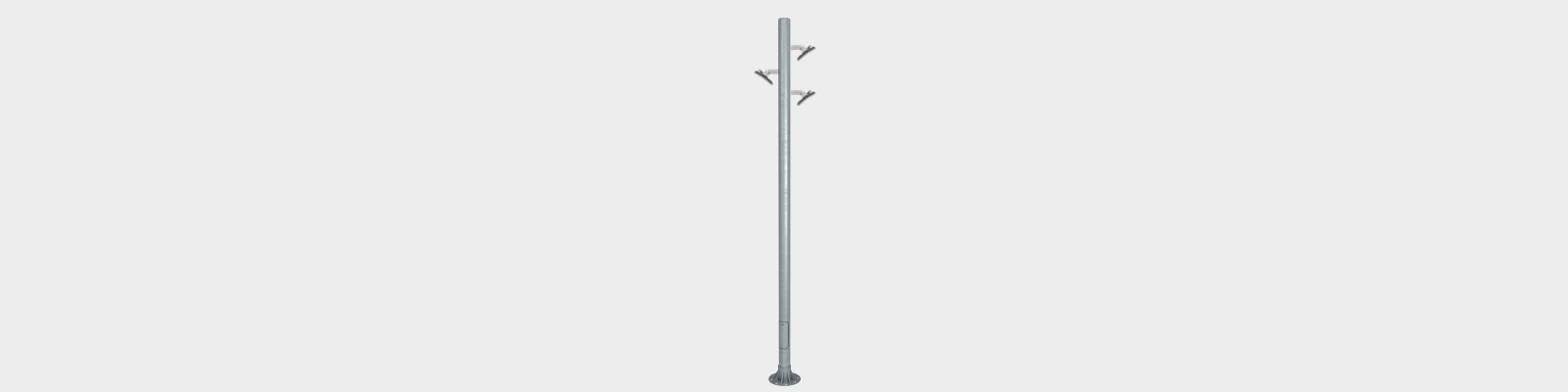

Cilindrico Gran Diámetro Pole
Description
The large diameter Cilíndrica pole is made of one single piece with one single section. They are designed to attach multiple projectors at different heights and at 120º around the column. Base plate with reinforcement ring and 8 gusset plates.
Material
Manufactured in one single piece of S-235-JR laminated steel and hot dip galvanized.
Finishes
Hot dip galvanized.
Place of installation
Post specially designed to be installed in squares, roundabouts, urban intersections and car parks.
Mounting
The large diameter Cilíndrica pole is made of one single piece with one single section. They are designed to attach multiple projectors at different heights and at 120º around the column. Base plate with reinforcement ring and 8 gusset plates.
Material
Manufactured in one single piece of S-235-JR laminated steel and hot dip galvanized.
Finishes
Hot dip galvanized.
Place of installation
Post specially designed to be installed in squares, roundabouts, urban intersections and car parks.
Mounting
- Height of 10 to 12 m: Using 8 anchor bolts of M22x700 on a base plate of 550 mm diameter.
TECHNICAL DATA
Dimensions
Downloads
Regulations
- Ground
Locations
- Highways and roads
- City and suburbs
- Playgrounds and rural areas
Colors
- G color
