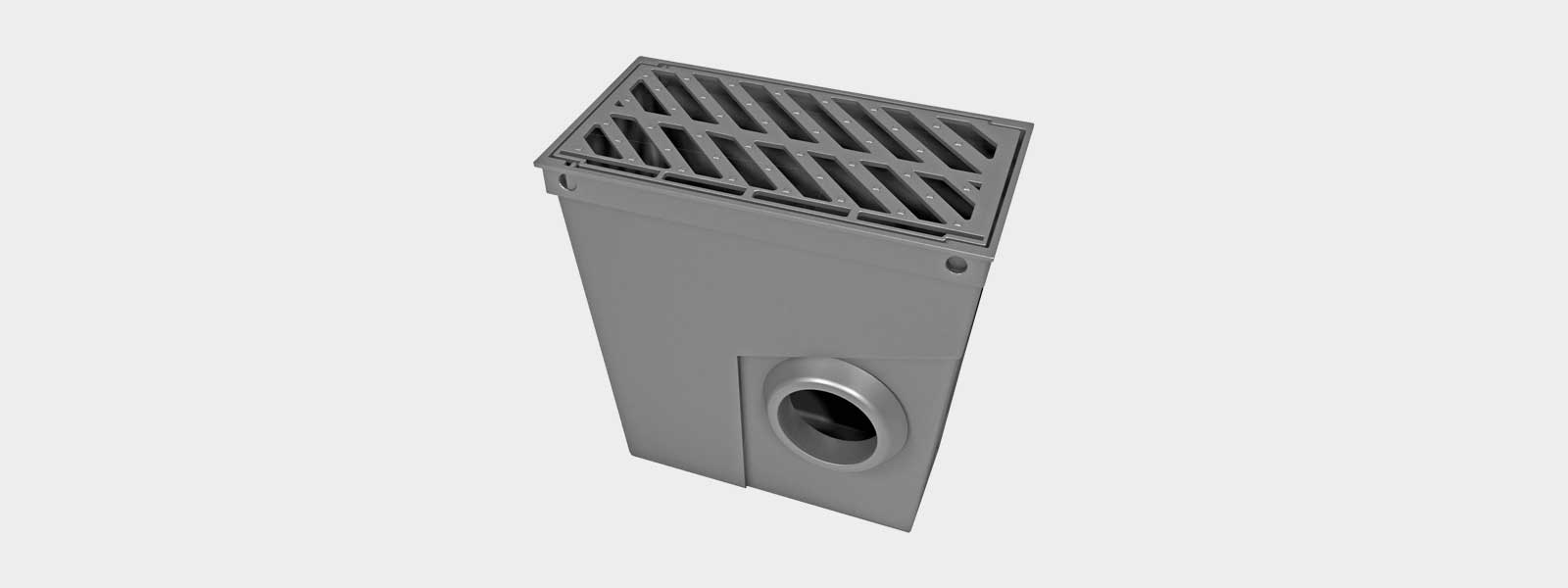

Ref. SF570

SF570

  • Channel made of spheroidal graphite ductile iron, as per ISO 1083 (Type 500-7) and standard EN 1563.
  • Complies with European standard UNE EN-124.
  • Articulated anti-theft device.
  • Reversible.
  • Diagonal bar (anti-bicycle) design ensure high absorption.
  • Single-piece construction.
  • O-ring connection for Ø200 mm PVC pipe.
  • With removable siphon blade.
  • Metal non-slip surface.
  • Coated with non-toxic, non-flammable and environmentally safe black paint.
  • Optional: O-ring connection for Ø160 mm PVC pipe.

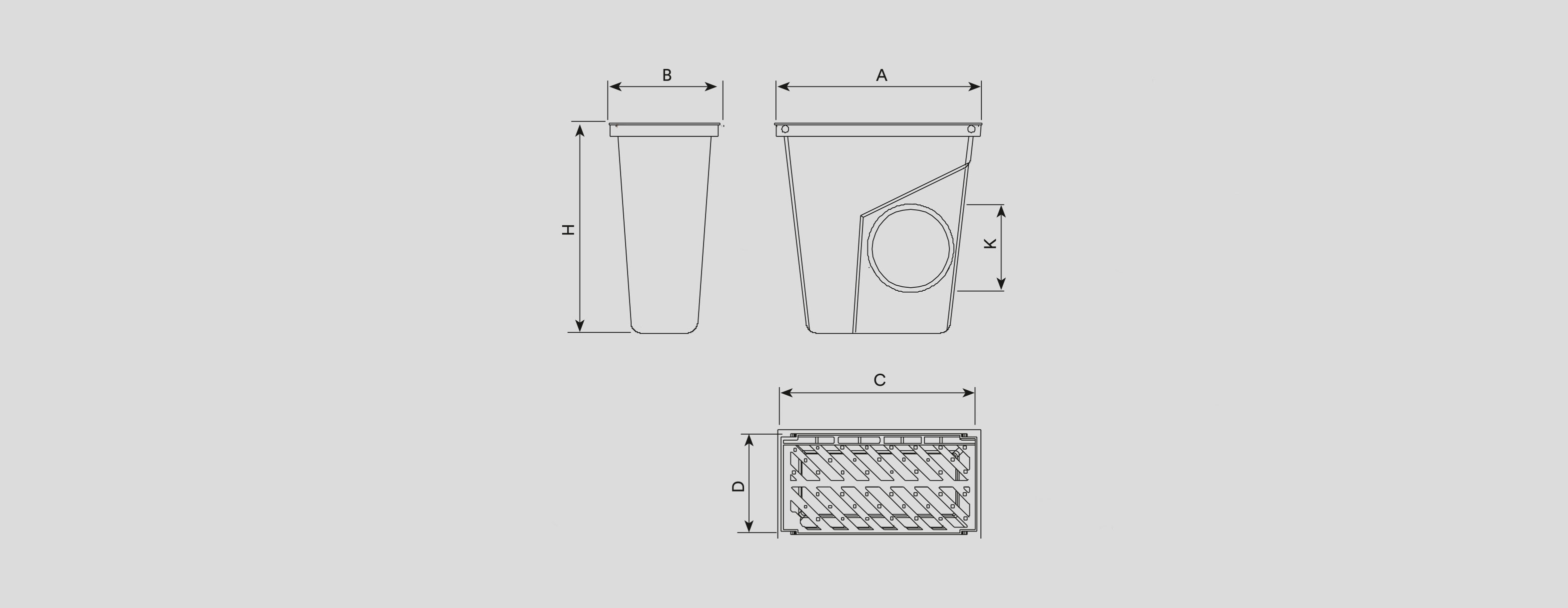

Dimensions

Covers and grates for sewage, manhole covers, cast iron, channels and sumps , Drains , SF570 SF570 ,
  • CLASS - C250
  • A-565mm
  • B-305mm
  • H-570mm
  • C-535mm
  • D-275mm
  • ØK-200

Specifications

  • C-250
    C-250
