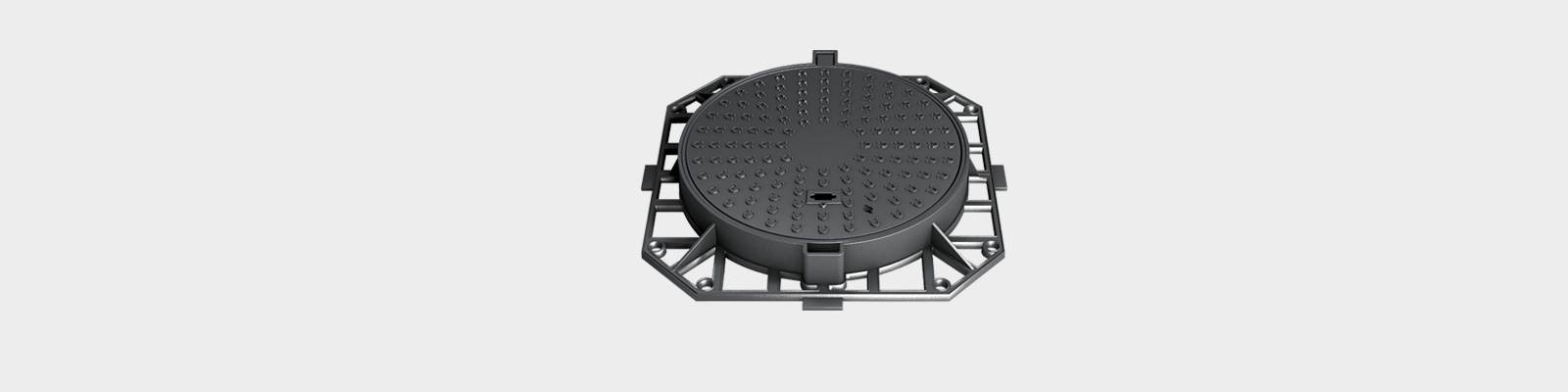

Ref. TP3K85
Andri
Manufacturing:
Cover and frame assembly made of ductile cast iron.
Stability:
Hinged ergonomic system. Opening up to 120º and blockage at 90º. Elastic closing system for a higher safety in its use. Soundproofing gasket placed in the frame, ensuring a perfect stability and a total absence of noise. Specially designed for roadways with no heavy traffic. Square frame which allows a better installation on the hole.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways, pedestrian ways, roadsides and parking areas for all type of vehicles.
Cover and frame assembly made of ductile cast iron.
Stability:
Hinged ergonomic system. Opening up to 120º and blockage at 90º. Elastic closing system for a higher safety in its use. Soundproofing gasket placed in the frame, ensuring a perfect stability and a total absence of noise. Specially designed for roadways with no heavy traffic. Square frame which allows a better installation on the hole.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways, pedestrian ways, roadsides and parking areas for all type of vehicles.
Dimensions
- CLASS - D400
- AxB-1000mm
- C-850mm
- H-100mm
- P-810mm
Downloads
Specifications
- D-400
Regulations
- UNE EN-124
