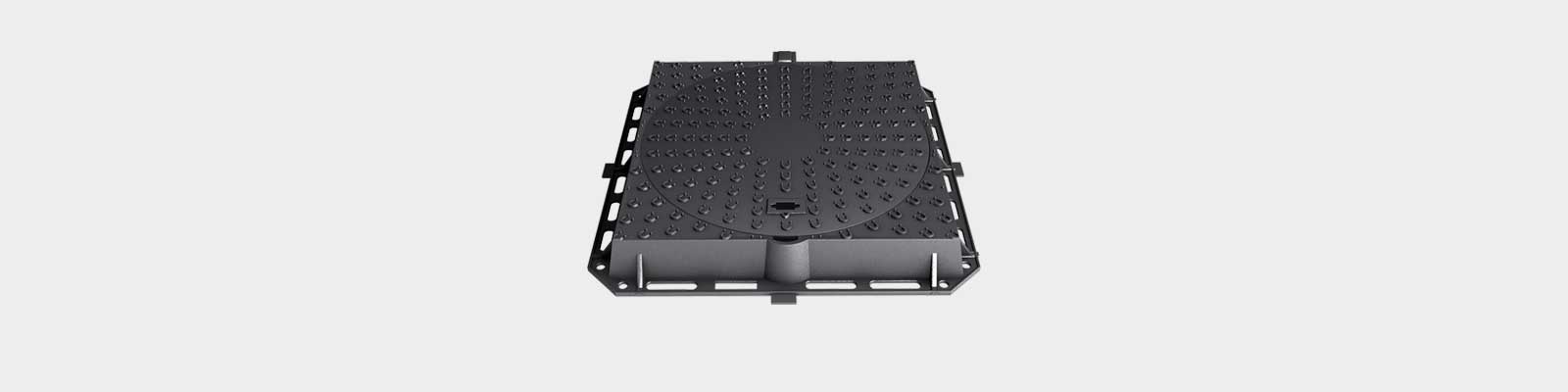

Ref. TP3A

Drim

Manufacturing:
Cover and frame assembly made of ductile cast iron.

Stability:

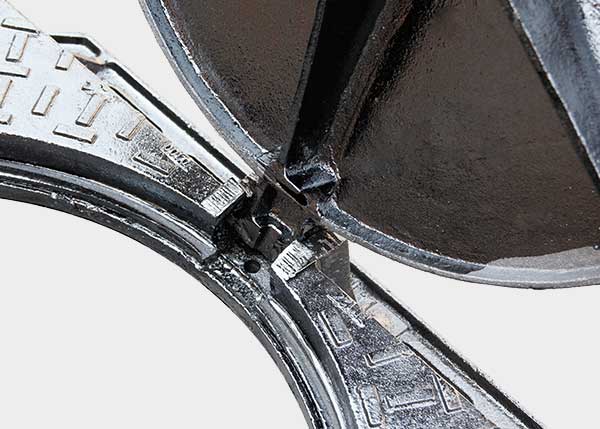

Hinged ergonomic system. Opening up to 120º and blockage at 90º. Elastic closing system for a higher safety in the daily use. Soundproofing gasket placed in the frame, ensuring a perfect stability and a total absence of noise. Specially designed for roadways with no heavy traffic. Square visible frame adapted to paved roads.

Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.

Installation:
Class D400 EN-124. Group 4. Roadways, pedestrian ways, roadsides and parking areas for all type of vehicles.

Dimensions

Covers and grates for sewage, manhole covers, cast iron, channels and sumps , Round Manhole Covers , TP3A Drim ,
  • CLASS - D400
  • A-850mm
  • B-850mm
  • C-650mm
  • H-100mm
  • P-600mm

Specifications

  • D-400
    D-400

Regulations

  • UNE EN-124
    UNE EN-124
