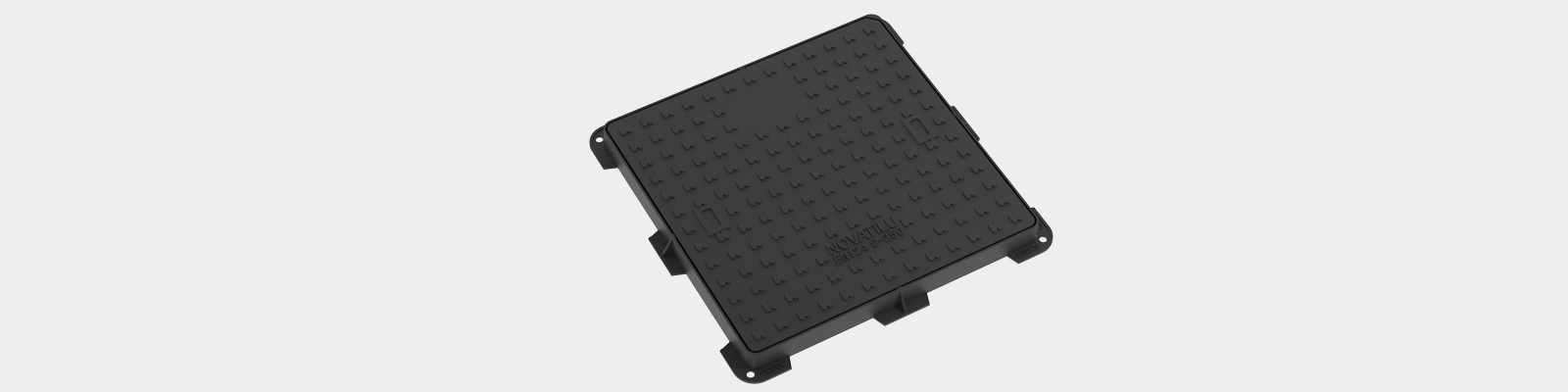

Ref. TQ40C
Hidraulica
Manufacturing:
Cover and frame assembly made of ductile cast iron.
Stability:
Opening ergonomic system through the cover rib using a crowbar. Hydraulic shape frame on the inside for a perfect fitting of the whole set.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas.
Cover and frame assembly made of ductile cast iron.
Stability:
Opening ergonomic system through the cover rib using a crowbar. Hydraulic shape frame on the inside for a perfect fitting of the whole set.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas.
Dimensions
- CLASS - C250
- A-400mm
- B-400mm
- H-45mm
- C-325mm
- D-325mm
- P-300mm
- P1-300mm
TECHNICAL DATA
Downloads
Specifications
- C-250
