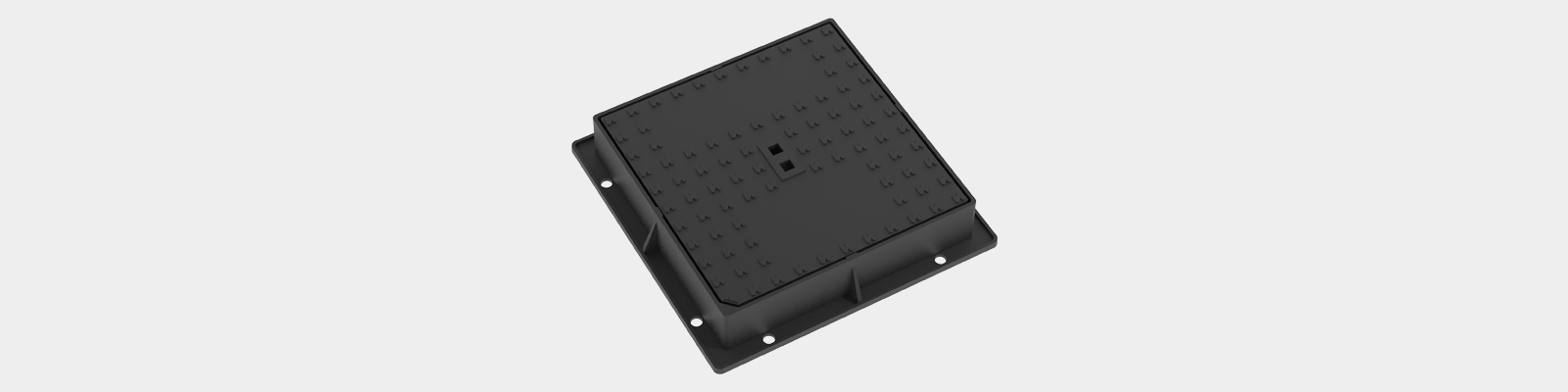

Ref. TQ40D
Hidraulica
Manufacturing:
Cover and frame assembly made of ductile cast iron.
Stability:
Opening ergonomic system through the cover rib using a crowbar. Hydraulic shape frame on the inside for a perfect fitting of the whole set.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways, pedestrian ways), roadsides and parking areas for all type of vehicles.
Cover and frame assembly made of ductile cast iron.
Stability:
Opening ergonomic system through the cover rib using a crowbar. Hydraulic shape frame on the inside for a perfect fitting of the whole set.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways, pedestrian ways), roadsides and parking areas for all type of vehicles.
Dimensions
- CLASS - D400
- A-405mm
- B-405mm
- H-80mm
- C-340mm
- D-340mm
- P-300mm
- P1-300mm
TECHNICAL DATA
Downloads
Specifications
- D-400
