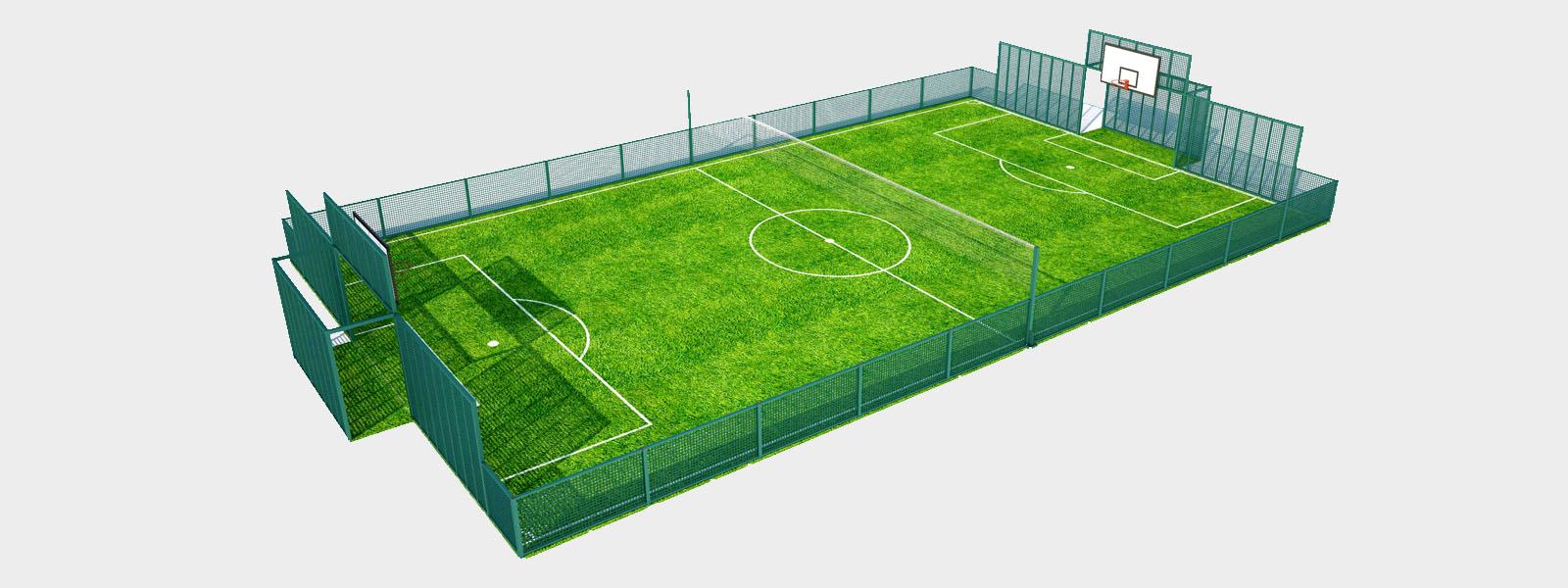

Ref. PMD2010T

TRAMEX

STRUCTURE
Tramex structure made ??of rectangular framing 50x30mm racks with 50x50mm light welded mesh galvanized wire 4mm. Galvanized steel posts with a cross section of 60x60mm and a thickness of 4mm , with base plates for bolting to concrete slab or perimeter band with HILTI-type anchor systems. The posts have a height of 1.00 m in the center of the court and between 2.00 m and 3.00 m at the ends. Baked on lacquer finish in green RAL 6005 or other selected color. 2 vandal-proof baskets with a backboard measuring 1 x 1.2 m, made from expanded metal, with a 20-mm tube ring and vandal-proof net. 2 goals that are built into the metal court structure, measuring 60 x 60 x 4 mm. Built into the center of the court is a multipurpose post, measuring 80 x 80 cm and with a thickness of 2 mm. It is used to connect a central movable net with adjustable height for sports played with a net. All fasteners are protected by plastic caps and cap nuts. *All to be built on a perimeter footing made from reinforced ha-250 concrete with D=10 mm girder-like fastening columns and D=8 mm abutments.

TURF
12 mm turf. Type of production: Line tufting Composition: 100 % Polypropylene (PP) Structure: Straight FIBRILLATED yarn Yarn weight: 6,600 Dtex +/- 15% Yarn color: Green Gauge: 3/16 Yarn weight: 885 g/m2 +/- 15% Yarn height: 12 mm +/- 5 % Number of stitches / dm: 20 dm Number of stitches / m2: 42,000 stitches/m2 Base support or backing: Polypropylene Weight: 137 g/m2 +/- 5% Coating weight: 500 g/m2 +/-20%. Coating composition: Polyurethane (PU) Total weight of the manufactured turf: 1,522g/m2 +/- 20 % Maximum roll width: 4 m. Roll length: Upon request Permeability: 4,500 mm/h Rounded, sifted dry sand is provided. Grain size: 0.3-0.8 mm Amount: 18 kg/m²

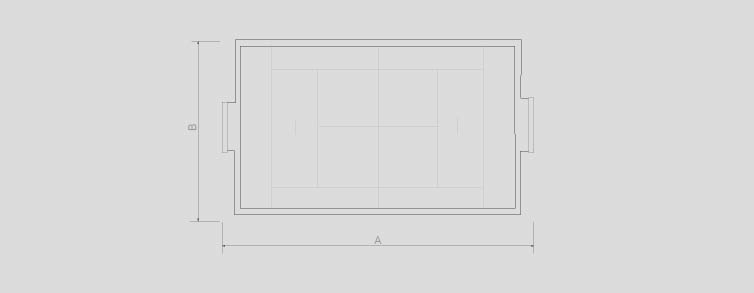

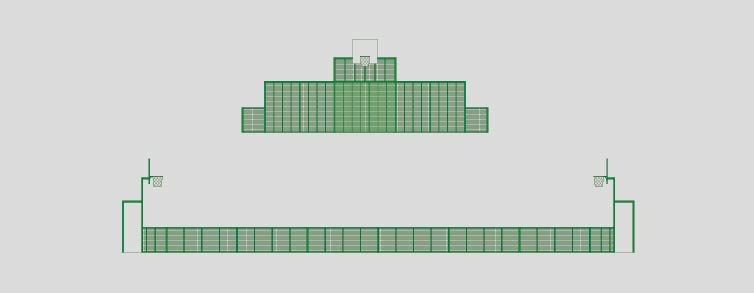

Dimensions
