Ref. UH11A

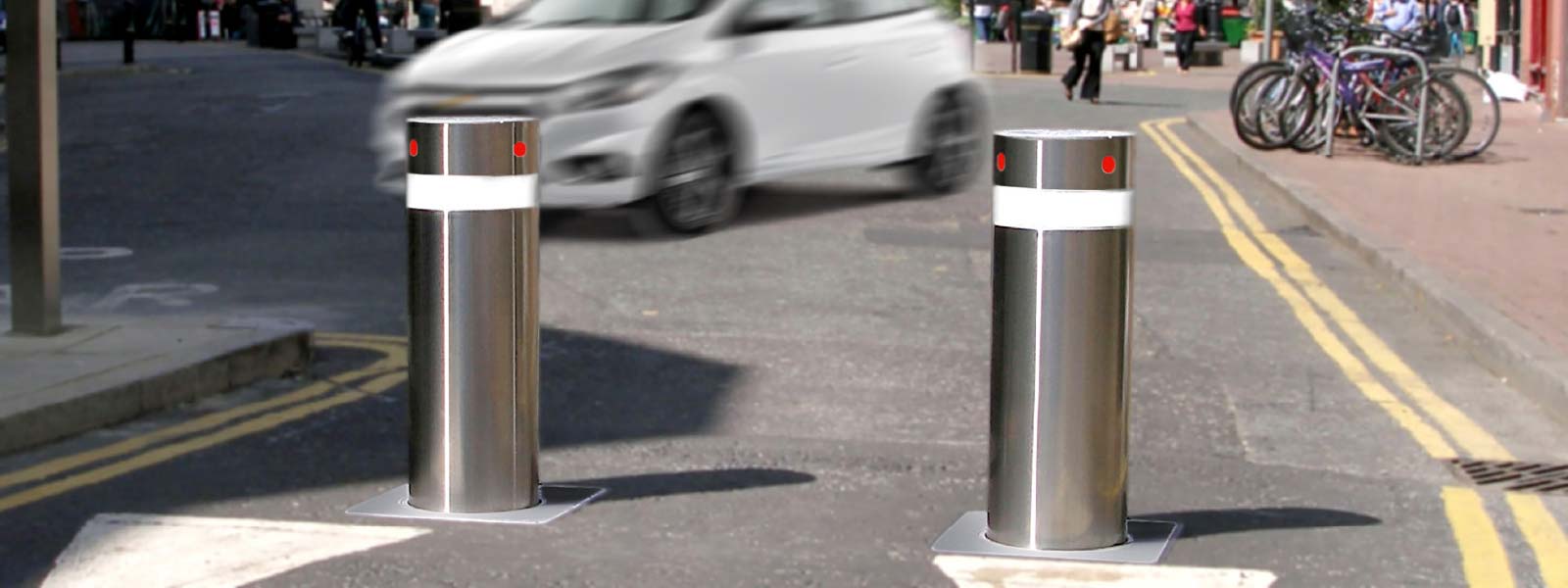

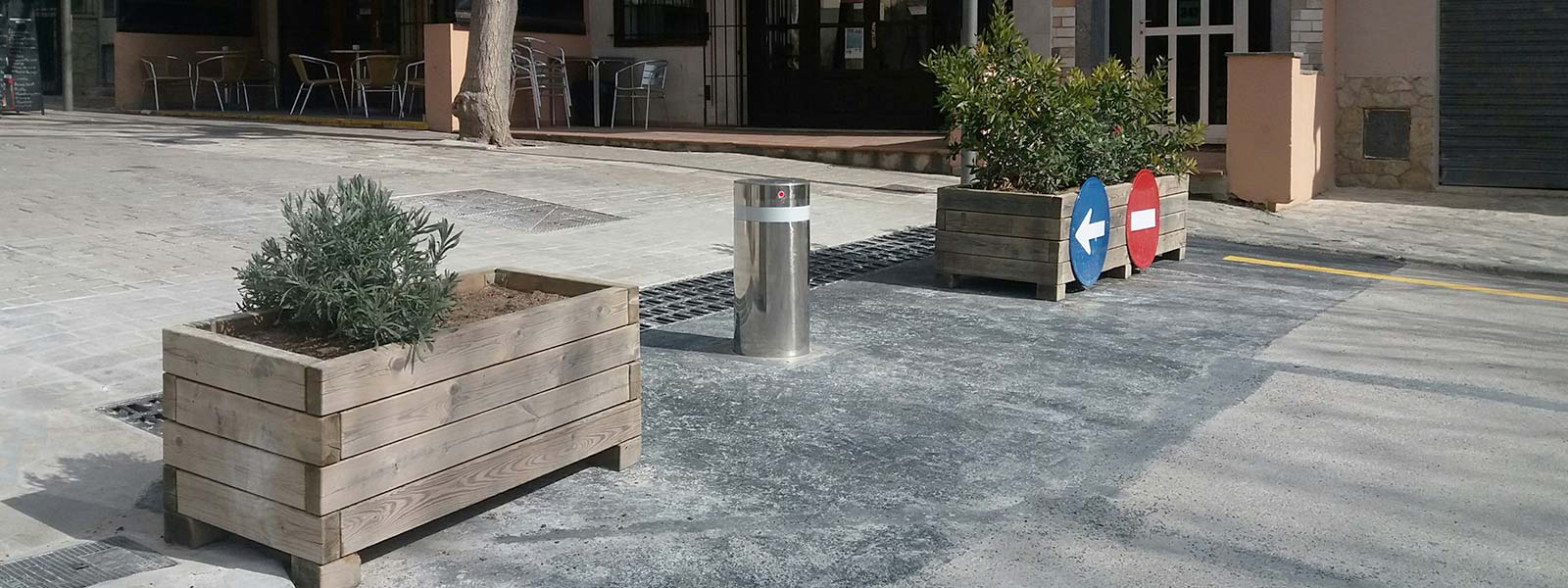

Auto Bollard
Manufacturing:
Stainless steeel piston. Polyamide grey electrical panel, IP65 watertighness and lock with special key. Electric protection through differential. Bollard signage formed by four red led and a white relective band. It includes two safety loops and a remote control. Automaton for bollard functionality management. 2 automatic movement security detectors + 2m x 2m cable for connection. Stainless steel top cover, chasis and screws. Receiver capacity of 500 users + emitting remote control, traffic lights connection relays. Weekly shcedule timer integrated and manouvre for traffic light. Optional: LEDS traffic light system indicator of manouvre. HPS (with post). HPPS (wall). HPLEP card reader system.
Finishing:
Stainless steel AISI-304 bright finishing. Optional: possibility of incorporating custom marking on the top cover
Functionning::
Descent with the control remote and ascent after the vehicle has passed.
Installation:
Embedded base.
Stainless steeel piston. Polyamide grey electrical panel, IP65 watertighness and lock with special key. Electric protection through differential. Bollard signage formed by four red led and a white relective band. It includes two safety loops and a remote control. Automaton for bollard functionality management. 2 automatic movement security detectors + 2m x 2m cable for connection. Stainless steel top cover, chasis and screws. Receiver capacity of 500 users + emitting remote control, traffic lights connection relays. Weekly shcedule timer integrated and manouvre for traffic light. Optional: LEDS traffic light system indicator of manouvre. HPS (with post). HPPS (wall). HPLEP card reader system.
Finishing:
Stainless steel AISI-304 bright finishing. Optional: possibility of incorporating custom marking on the top cover
Functionning::
Descent with the control remote and ascent after the vehicle has passed.
Installation:
Embedded base.
Dimensions
- A-273mm
- B-400mm
- C-450mm
- H-1557mm
- H1-600mm
