Ref. ABRP
Pared Bracket
Description

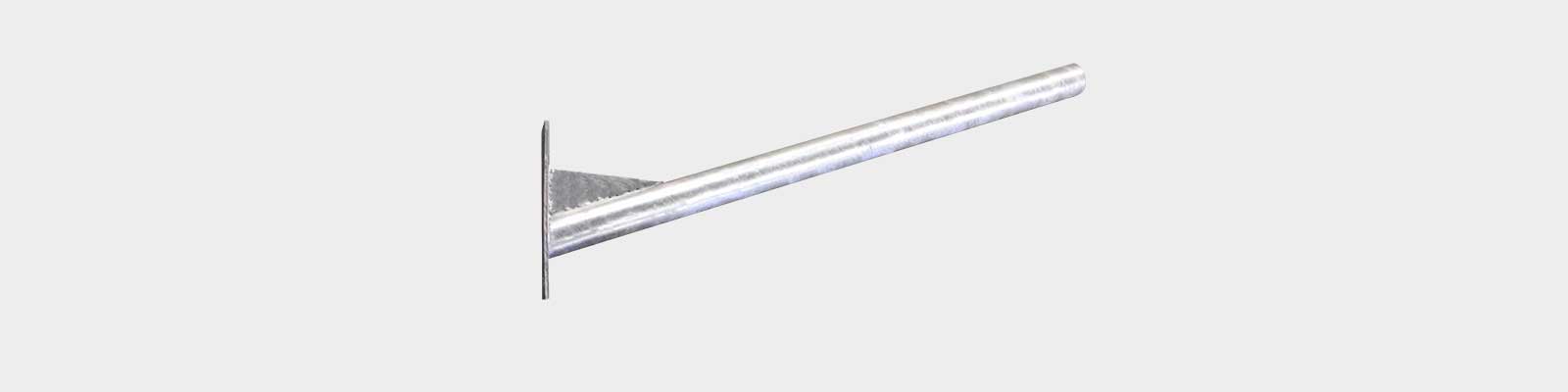

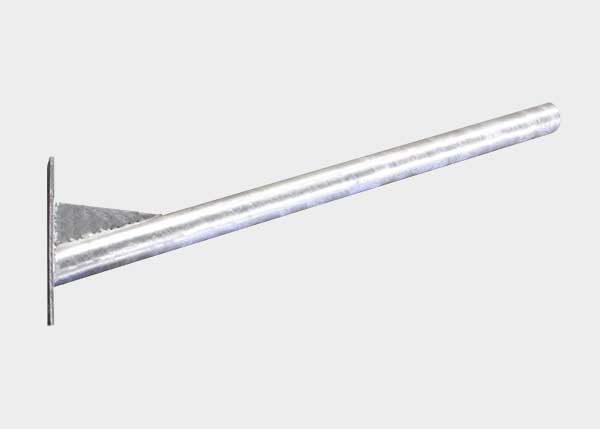

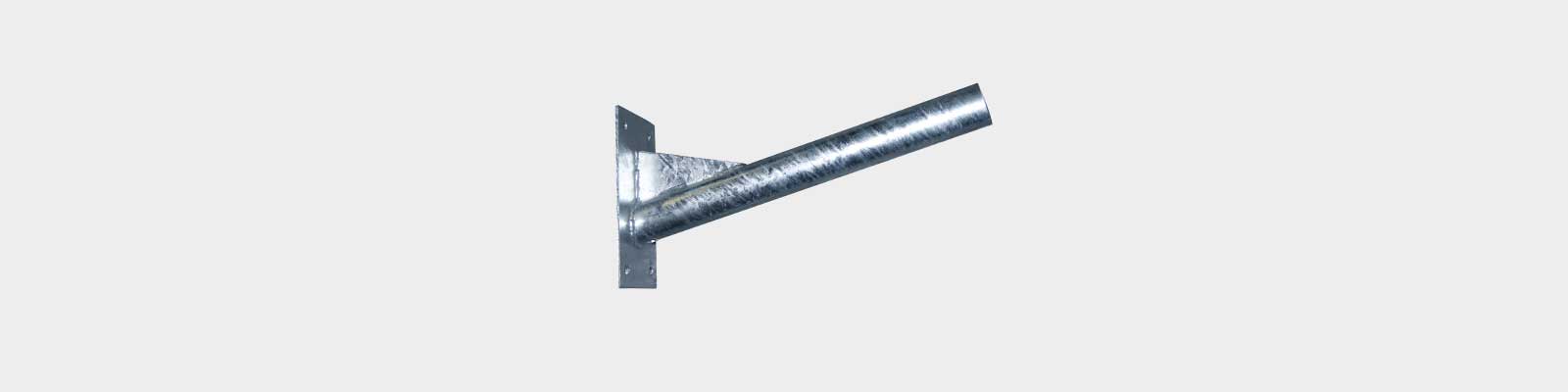

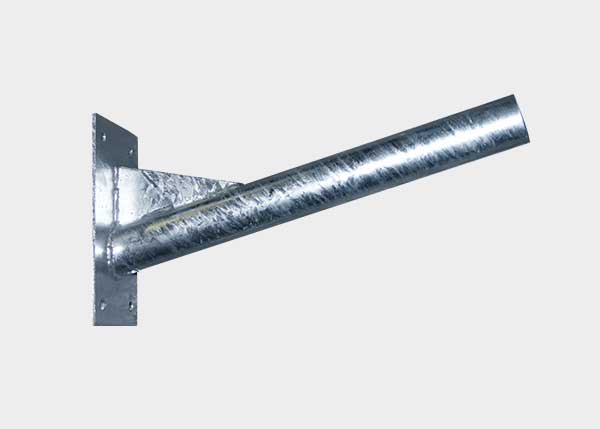

The pole bracket is tubular and functional, specially designed as a wall support for luminaires.
Material
Manufactured in galvanized steel S-325-JR by hot inmersion.
Finishing
Galvanized by hot inmersion (G) Finishing in black painting mate optional (NM), average thickness of 90µm ± 10µm (UNE 48031).
Place of installation
Bracket specially designed to be installed in city centers, residential and pedestrian areas.
Fixing
By 4 expansion screws M12.

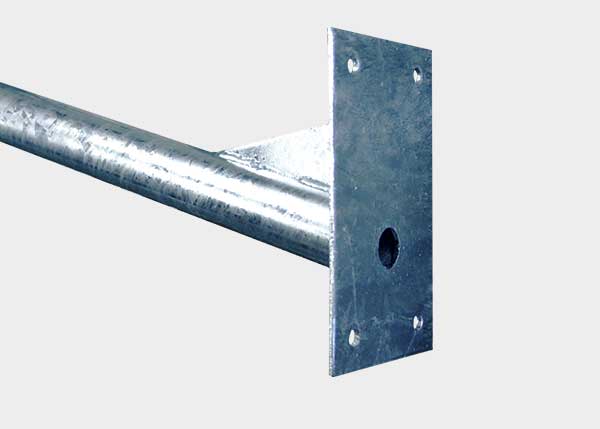

Input bracket end
Plate with four Ø14mm holes.
Bracket end
Ø60 mm.
The pole bracket is tubular and functional, specially designed as a wall support for luminaires.
Material
Manufactured in galvanized steel S-325-JR by hot inmersion.
Finishing
Galvanized by hot inmersion (G) Finishing in black painting mate optional (NM), average thickness of 90µm ± 10µm (UNE 48031).
Place of installation
Bracket specially designed to be installed in city centers, residential and pedestrian areas.
Fixing
By 4 expansion screws M12.
Input bracket end
Plate with four Ø14mm holes.
Bracket end
Ø60 mm.
TECHNICAL DATA

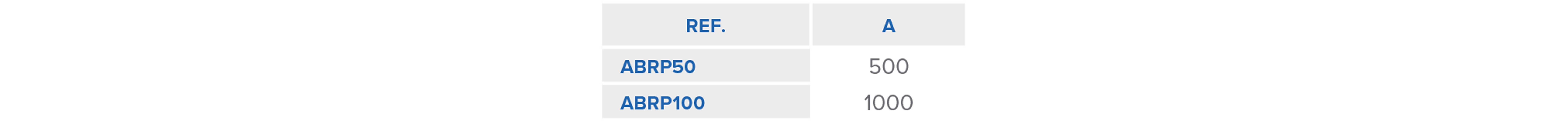

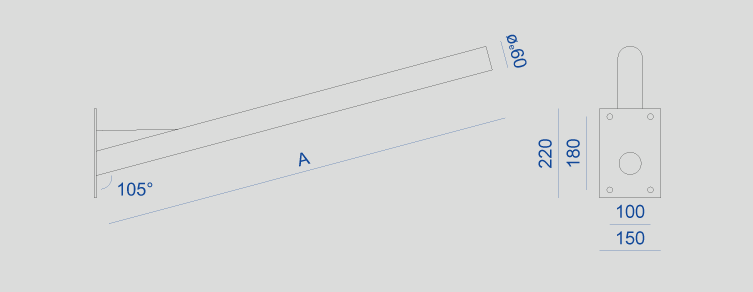

Dimensions
Downloads
Locations
- City and suburbs
Colors
- G color
- Color NM
