Ref. PCB

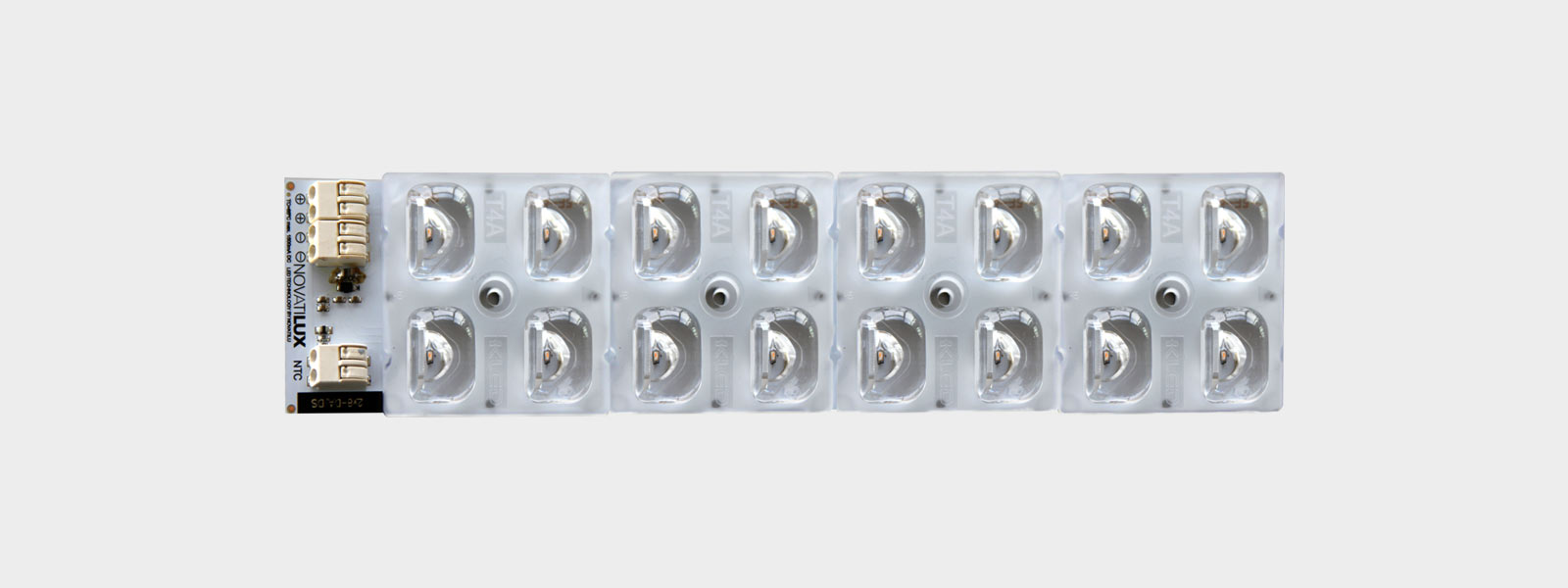

NOVATILUX PCB

• MCPCB aluminum with high thermal transfer and dielectric capacity of 6kV.
• Optical block: MCPCB NOVATILUX in 3 formats (8, 12 or 16 LED). Check color temperature.
• Configurations: PCB16NL (16x1) 48Vdc / PCB12NL (12x1) 36Vdc / PCB8NL (8x1) 24Vdc
• Triple overvoltage protection system.
• Thermal protection (NTC).
• Compatible with 2x2 optics (Zhaga).
• Light source: LED 10-60W (depending on configuration).
• Fixation: Adaptable to any luminaire with internal heat sink.
• Available with LEDs 3535 or 5050 with efficiencies up to 180 lm / W.
