Ref. ACS

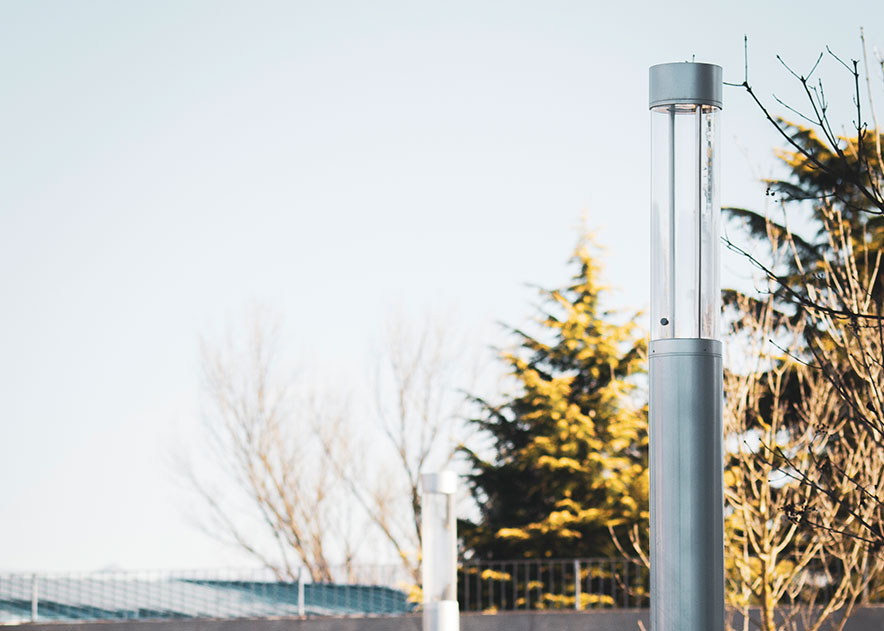

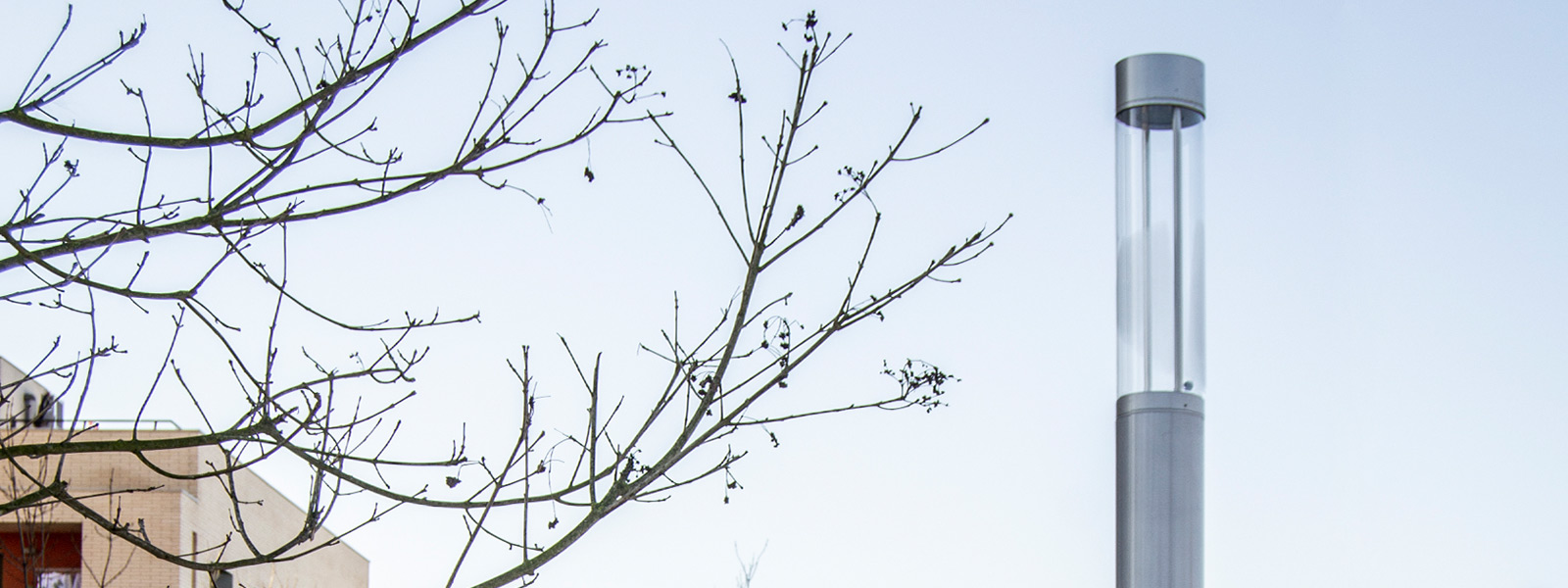

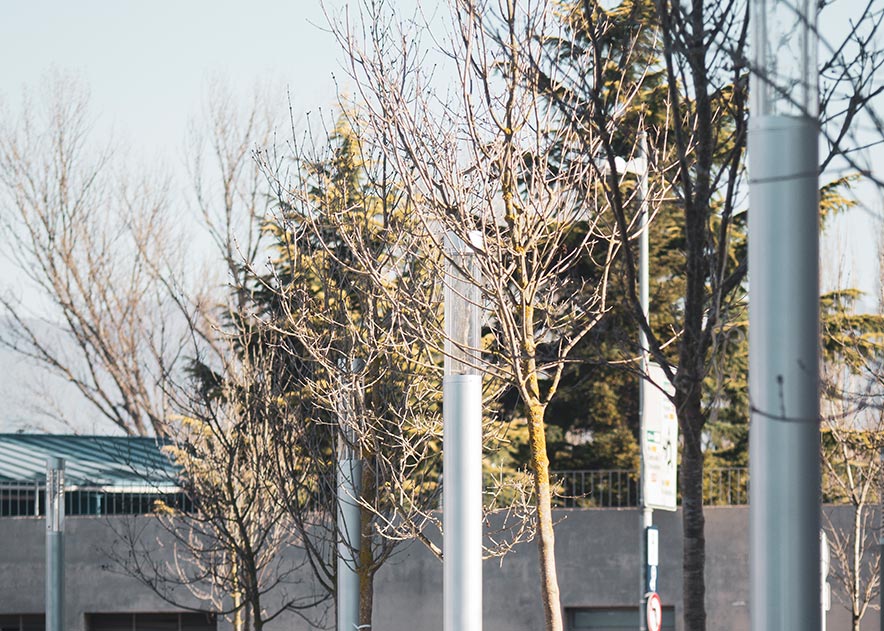

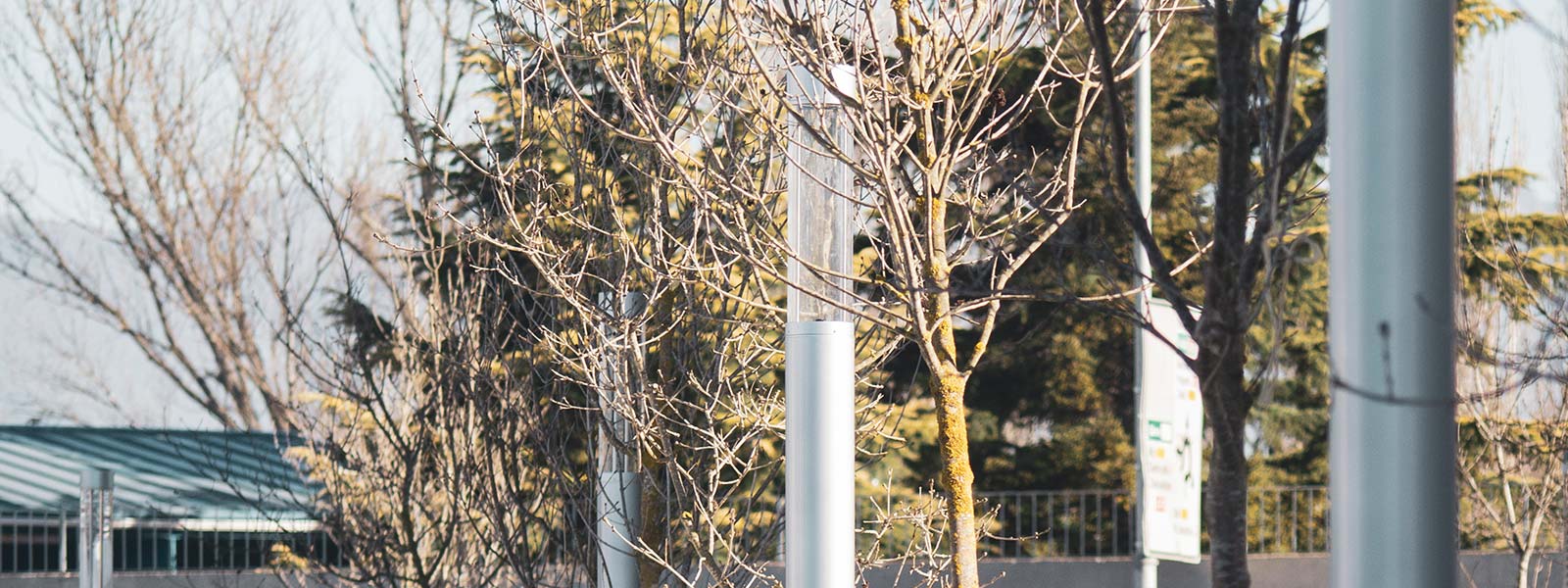

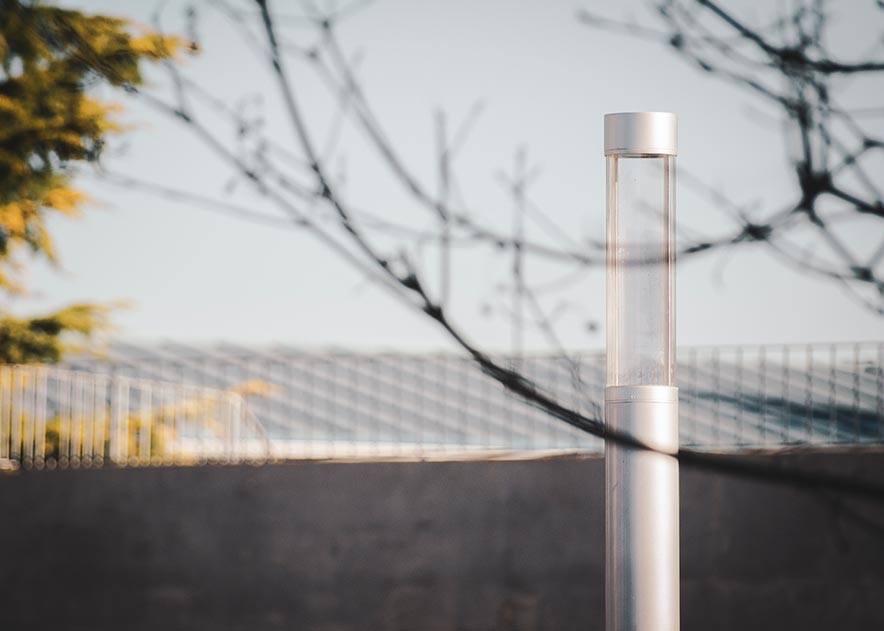

Stark Light point
Body
High pressure die-cast aluminum top cover. Extruded aluminum pole. Transparent PMMA diffuser.
Screws
Stainless steel bolts.
Optic bloc
1 COB LED module with anodized aluminum reflector. Consult for color temperatures.
Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.
Regulation
Control system compatible with: PWM - 0-10V - R adjustable.
Flow reduction
Flow reduction options:
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9007 color.
High pressure die-cast aluminum top cover. Extruded aluminum pole. Transparent PMMA diffuser.
Screws
Stainless steel bolts.
Optic bloc
1 COB LED module with anodized aluminum reflector. Consult for color temperatures.
Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.
Regulation
Control system compatible with: PWM - 0-10V - R adjustable.
Flow reduction
Flow reduction options:
- -Double level with management line or programmable timer.
- -Multi-level with re-programmable timer.
- -Remote management.
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9007 color.
TECHNICAL DATA
Dimensions
Downloads
Certifications
- Certificate European Conformity
- Certificate RoHS
- RAEE Certificate
Specifications
Regulations
- IP65
- IK08
- Ground
- Class II
- IP65
Locations
- City and suburbs
- Playgrounds and rural areas
Colors
- RAL 9007
Details and View
Photometry
Color temperatures
- 4000K
