Ref. ABRPTM

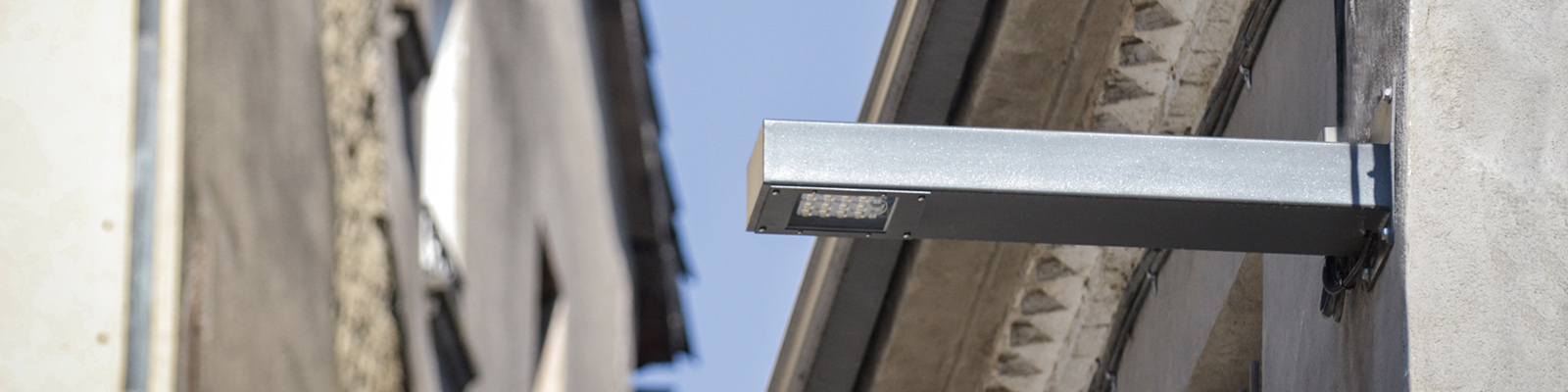

Tomsk Bracket
Body
Made of S-235-JR steel, rectangular section 100x200mm.
Screws
Stainless steel bolts.
Optic bloc
NOVATILUX module in 2 formats (16 or 32LEDs). Consult for color temperatures and light distributions.
Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class I or II. 20kA surge protector.
Regulation
Control system compatible with: PWM - 0-10V - R adjustable.
Flow reduction
Flow reduction options:
Light source
LED: 30-100W.
Finishing
Galvanized. Polyester powder paint coating, electrostatically sprayed and sublimated in oven. Corrosion resistant. Sable grey 900 colour. Consult for other finishes.
Mounting Height
4-7 m.
Attachment
By 4 anchor bolts.
Made of S-235-JR steel, rectangular section 100x200mm.
Screws
Stainless steel bolts.
Optic bloc

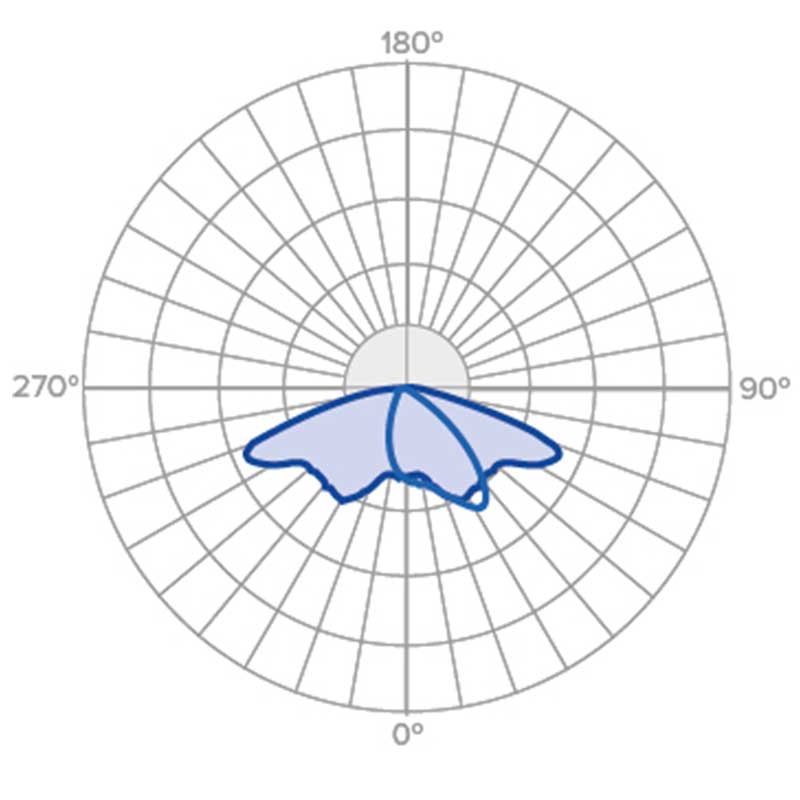

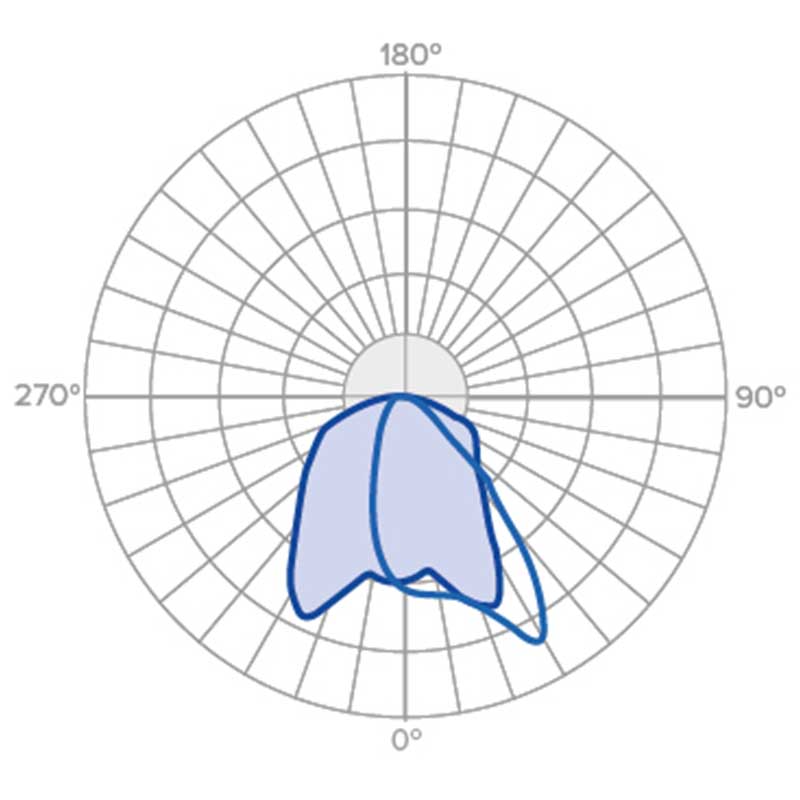

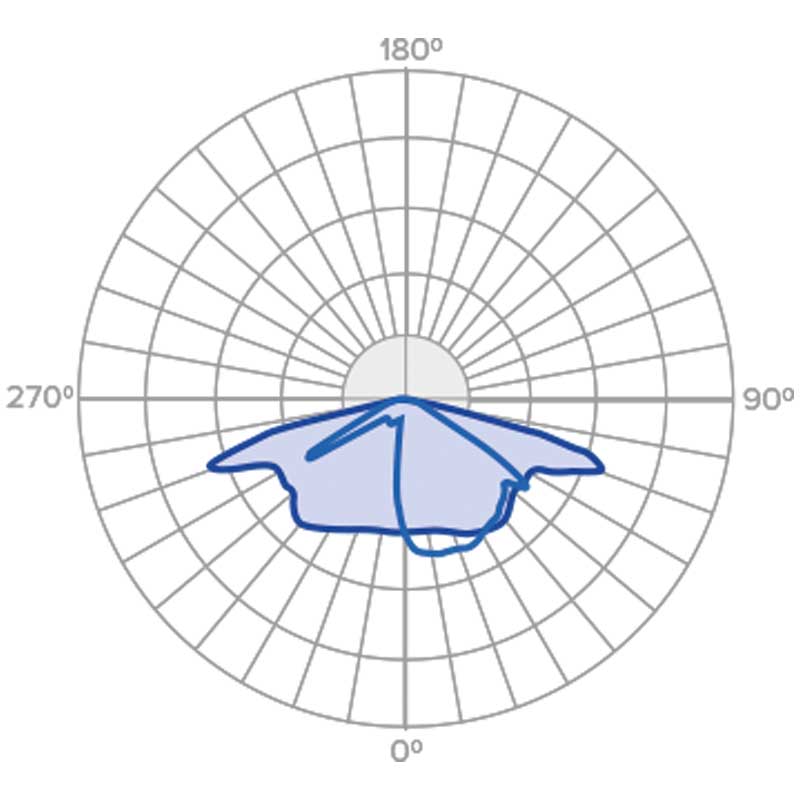

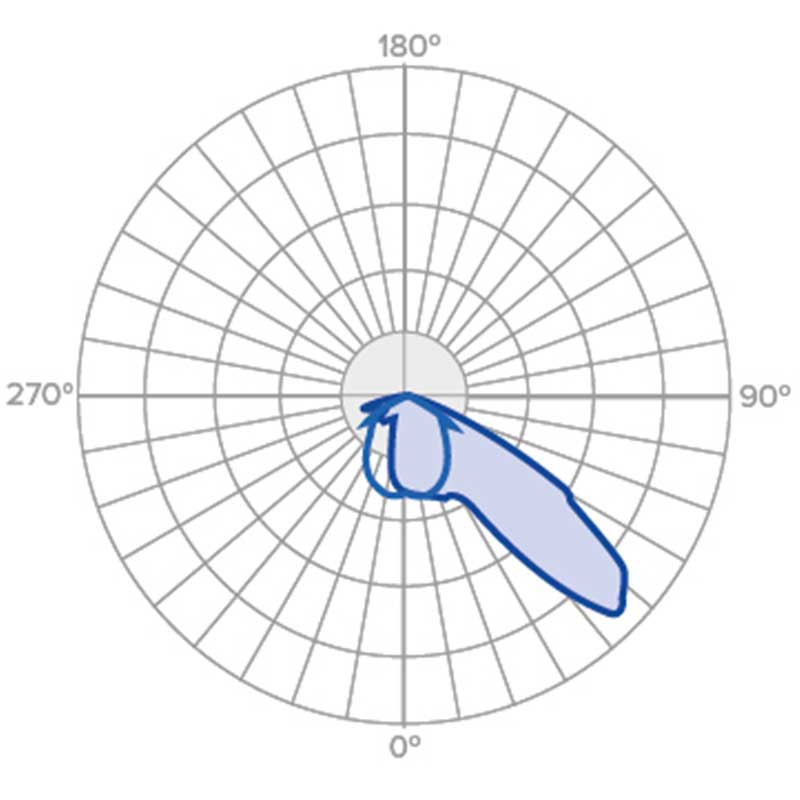

NOVATILUX module in 2 formats (16 or 32LEDs). Consult for color temperatures and light distributions.
Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class I or II. 20kA surge protector.
Regulation
Control system compatible with: PWM - 0-10V - R adjustable.
Flow reduction
Flow reduction options:
- -Double level with line driver or programmable timer.
- -Multi-level with re-programmable timer.
- -Remote management.
Light source
LED: 30-100W.
Finishing
Galvanized. Polyester powder paint coating, electrostatically sprayed and sublimated in oven. Corrosion resistant. Sable grey 900 colour. Consult for other finishes.
Mounting Height
4-7 m.
Attachment
By 4 anchor bolts.
TECHNICAL DATA

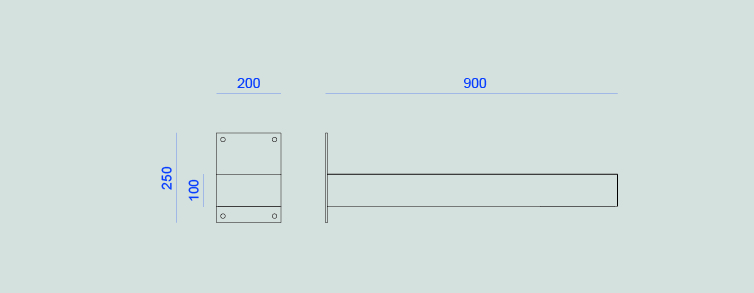

Dimensions
Downloads
Certifications
- Certificate European Conformity
- Certificate E+
- Certificate RoHS
- RAEE Certificate
- Certificate ENEC
- Certificate IEC
Specifications
- IK10
- IP66
-
-
-
- FHS
- CRI
Locations
- City and suburbs
Colors
- G color
