Ref. ALDPL

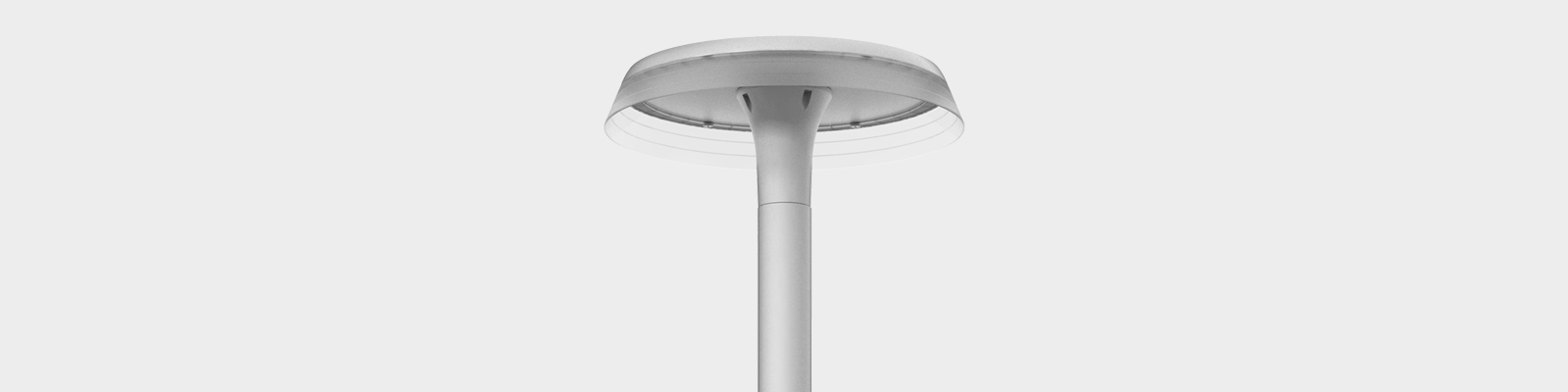

Dallas Plus Luminaire

Body
High pressure die-cast aluminum. 4mm tempered glass.Polycarbonate diffuser.

Screws
Stainless steel bolts.

Optic bloc
NOVATILUX module in 1 format (32 LEDs). Consult for color temperatures and light distributions.

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class I or II. 20kA surge protector.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable.

Flow reduction
Flow reduction options:
    -Double level with line driver or programmable timer.
    -Multi-level with re-programmable timer.
    -Remote management.

Light source
LED: 30-60 W.

Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9007 and RAL7035 colors.

Mounting Height
4 - 6 m.

Attachment
Top: Ø60 mm.

Adjustable
Non-adjustable luminaire.

TECHNICAL DATA

Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALDPL Dallas Plus Luminaire ,

Dimensions

Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALDPL Dallas Plus Luminaire ,

Certifications

  • Certificate European Conformity
    Certificate European Conformity
  • Certificate E+
    Certificate E+
  • Certificate RoHS
    Certificate RoHS
  • RAEE Certificate
    RAEE Certificate
  • Certificate ENEC
    Certificate ENEC
  • Certificate IEC
    Certificate IEC

Specifications

  • IP65
    IP65
  • IK08
    IK08
  • FHS
    FHS
  • CRI
    CRI
  • IP65
    IP65

Locations

  • City and suburbs
    City and suburbs

Colors

  • RAL 7035
    RAL 7035
  • RAL 9007
    RAL 9007

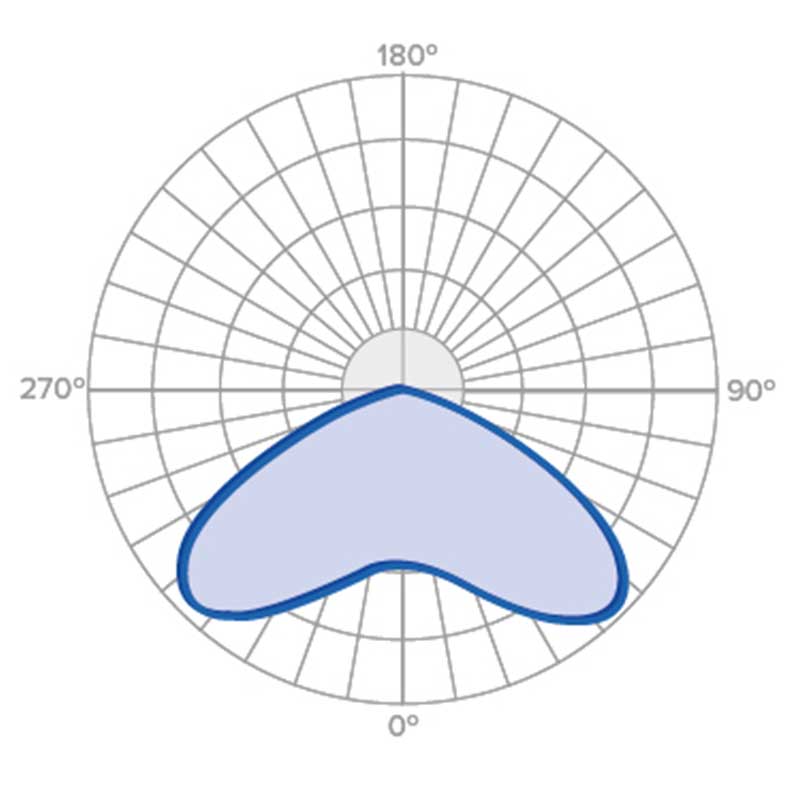

Photometry

  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALDPL Dallas Plus Luminaire ,

Color temperatures

  • Amber
    Amber
  • 3000K
    3000K
  • 4000K
    4000K
  • 5000K
    5000K
